Gas Oven Igniter Glows But Won't Light

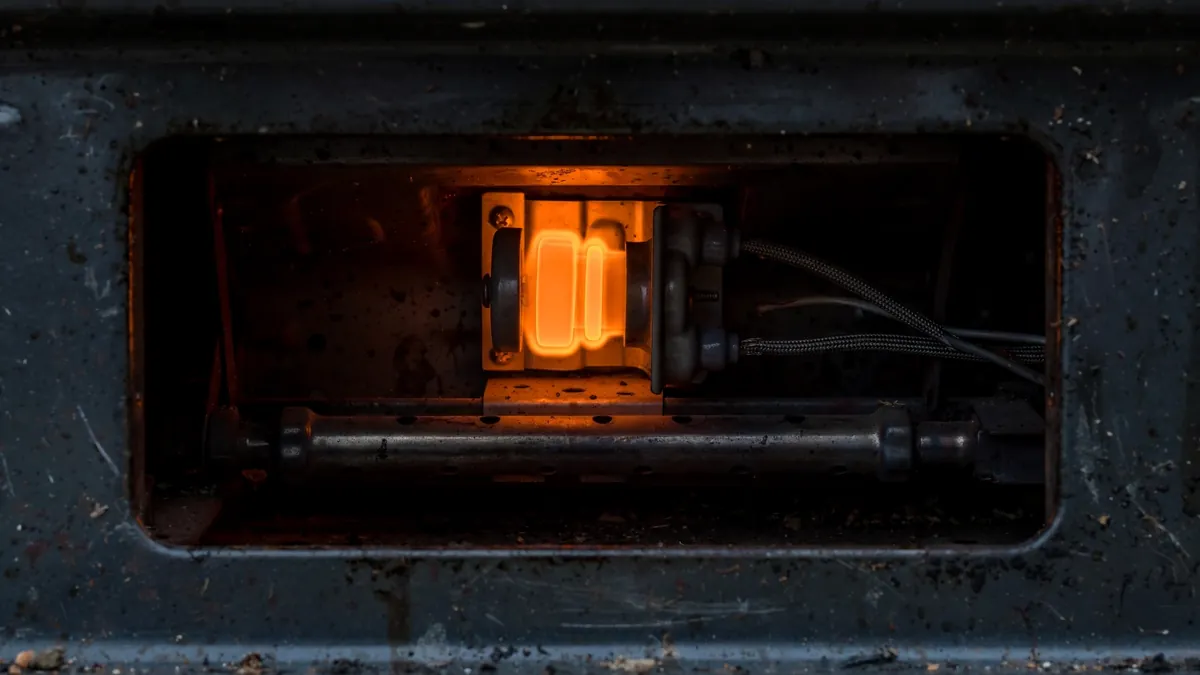

You set the oven to bake. You look inside and see the igniter glowing bright orange. You wait. And wait. The burner never lights. When a gas oven igniter glows but won’t light, it feels like a contradiction. The part is clearly working, yet the oven stays cold. The explanation is simple once you know how a gas oven lights. The glow is only half the job.

Gas Oven Igniter Glows But Won’t Light: the Short Answer

A gas oven igniter does two jobs, not one. First it glows hot. Then it must draw enough electrical current to open the gas safety valve. The valve is designed so it only opens when the igniter is hot enough to light the gas safely.

A worn igniter still glows orange. It looks fine. But it no longer pulls enough current to open the valve. No gas flows. No flame. This is the single most common gas oven failure, and it accounts for most no light calls on gas ranges. The fix is a new igniter.

Why a Glowing Igniter Can Still Be Bad

Gas oven igniters are made of silicon carbide, a ceramic material that wears down with heat cycles. When new, a flat igniter draws around 3 amps of current, plenty to snap the safety valve open. As it ages, its resistance rises and the current drops. At some point it falls below the threshold the valve needs.

The tricky part is that the igniter still glows at this stage. It looks alive. The valve simply never opens. This is why “the igniter glows” does not mean “the igniter is good.” Many homeowners replace the gas valve first because the glow misleads them. In most cases the valve is fine and the igniter is the real problem.

Round igniters, found on some older models, work the same way with slightly different current specs. The principle never changes. Glow alone is not proof of a working igniter.

How to Test the Igniter

You can narrow this down with your eyes before you touch a tool.

1. Start the oven on bake and watch the igniter through the oven floor opening or the broiler drawer.
2. Time it. A healthy igniter lights the burner within about 30 to 90 seconds.
3. If it glows for three minutes or more with no flame, the igniter is weak.

The sure test needs a clamp meter. Clamp it around one of the igniter wires while the igniter glows. Read the amps. Most flat igniters need to draw about 3 amps to open the valve. A reading well under that confirms a weak igniter. If you do not own a clamp meter, the long glow with no flame is evidence enough for most technicians to replace the igniter.

Replacing the Igniter: Step by Step

This is one of the most homeowner friendly gas oven repairs. The part is inexpensive and the swap takes about half an hour.

1. Turn the gas valve behind the range to the off position. Unplug the range.
2. Remove the oven racks and the oven floor panel. It usually lifts out or comes off with a few screws.
3. Find the igniter mounted next to the burner tube. It has two screws and one electrical plug or wire nuts.
4. Take a photo of the wiring before you disconnect anything.
5. Remove the screws, unplug the igniter, and install the new one in the same position.
6. Reconnect the wires exactly as they were. Refit the oven floor and racks.
7. Turn the gas back on, plug the range in, and test on bake. The burner should light within about a minute.

Buy an igniter made for your exact model number. Generic igniters sometimes draw the wrong current and cause the same problem you are trying to fix. The model number is on a tag inside the oven door frame or behind the storage drawer.

Other Reasons the Burner Will Not Light

If a new igniter does not solve it, the problem is further down the chain. These are less common but worth knowing.

A Failed Gas Safety Valve

The safety valve itself can fail in a closed position. This is rare compared to igniter failure. A technician confirms it by checking that the igniter draws full current yet no gas reaches the burner. Valve replacement involves gas connections, so leave this one to a professional.

A Broken Wire or Bad Connection

Wires running to the igniter pass through hot areas and can burn through or work loose. A wire that is barely connected can let the igniter glow weakly while dropping the current below the valve threshold. Inspect the wiring when you have the oven floor out. Look for brittle, discolored, or broken insulation.

Control Board Issues

If the igniter never glows at all, the board may not be sending power. Check that the range has power and that no error code shows on the display. Board faults are the least common cause of a no light oven. A technician can test for voltage at the igniter connector to confirm.

Gas Safety Rules You Cannot Skip

Gas ovens demand respect. Never work on the burner or igniter with the gas valve open. If you smell gas at any point, stop. Leave the house. Call the gas company from outside. Do not flip switches or unplug anything while the smell is strong.

Never try to light the oven burner with a match or lighter. Modern ovens have no pilot light and no safe manual lighting path. Gas can pool inside the closed oven cavity and ignite all at once. The right fix is always a working igniter, not a workaround.

Keep the area around the burner clean. Grease and food debris near the burner can cause uneven flames and soot. A quick wipe during the igniter replacement costs nothing.

Glow With No Flame After a New Igniter?
